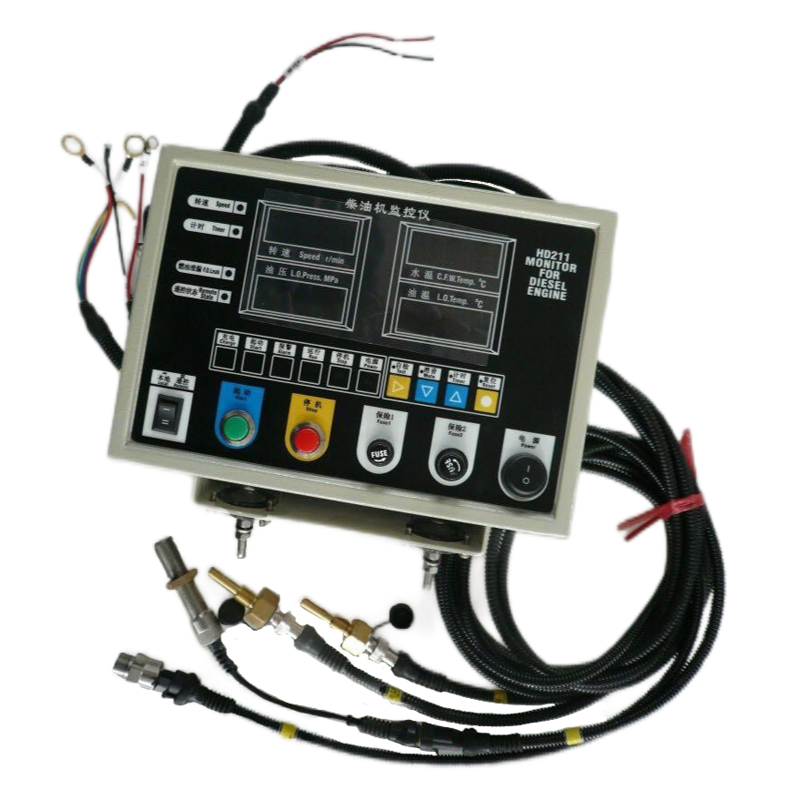

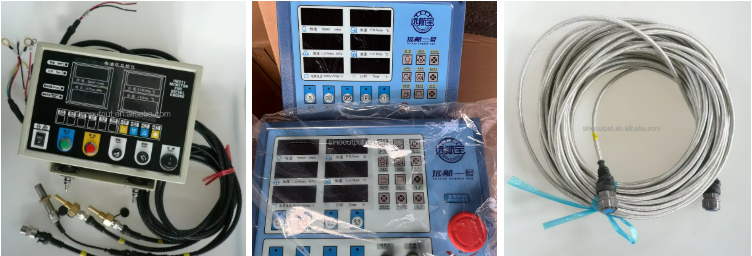

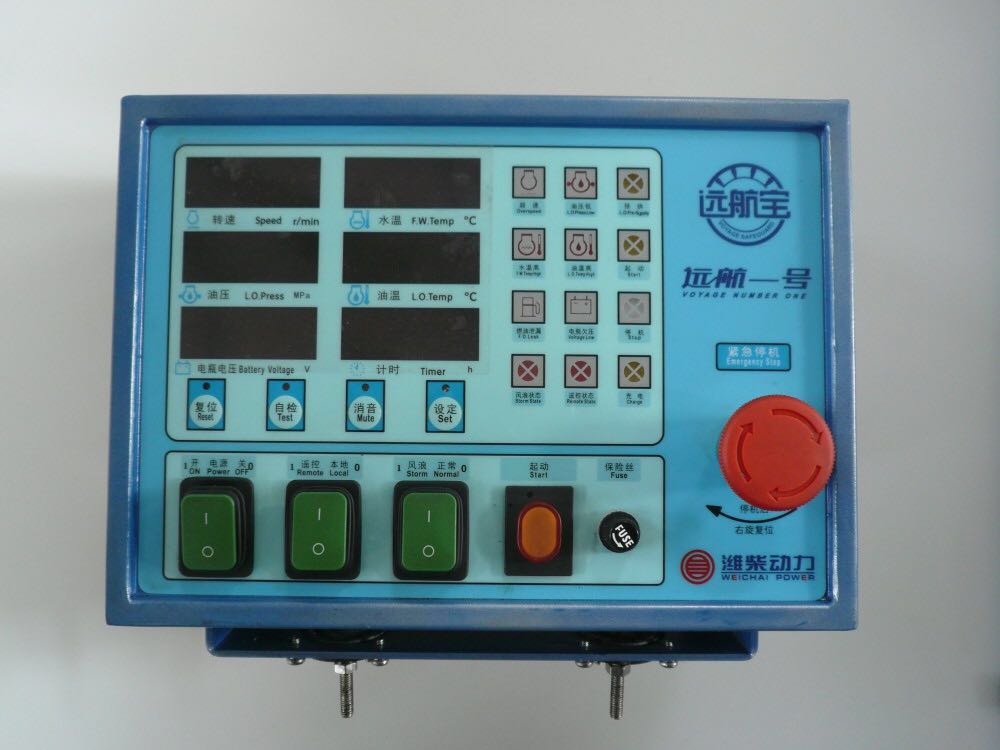

Diesel engine monitoring system HD211 series small size easy to operate for Weichai engine marine 1 year quality warranty

The HD211 series diesel engine monitor is an electronic instrument controlled by a single-chip microcomputer for automatic detection of diesel engine operating conditions and over-limit protection. It can automatically measure the speed, cooling water temperature, oil temperature and pressure, exhaust temperature, battery voltage and other parameters of various high, medium and low speed diesel engines, display digitally, conduct comprehensive multi-parameter monitoring and over-limit protection, and send out sound and light alarm signals.



Features

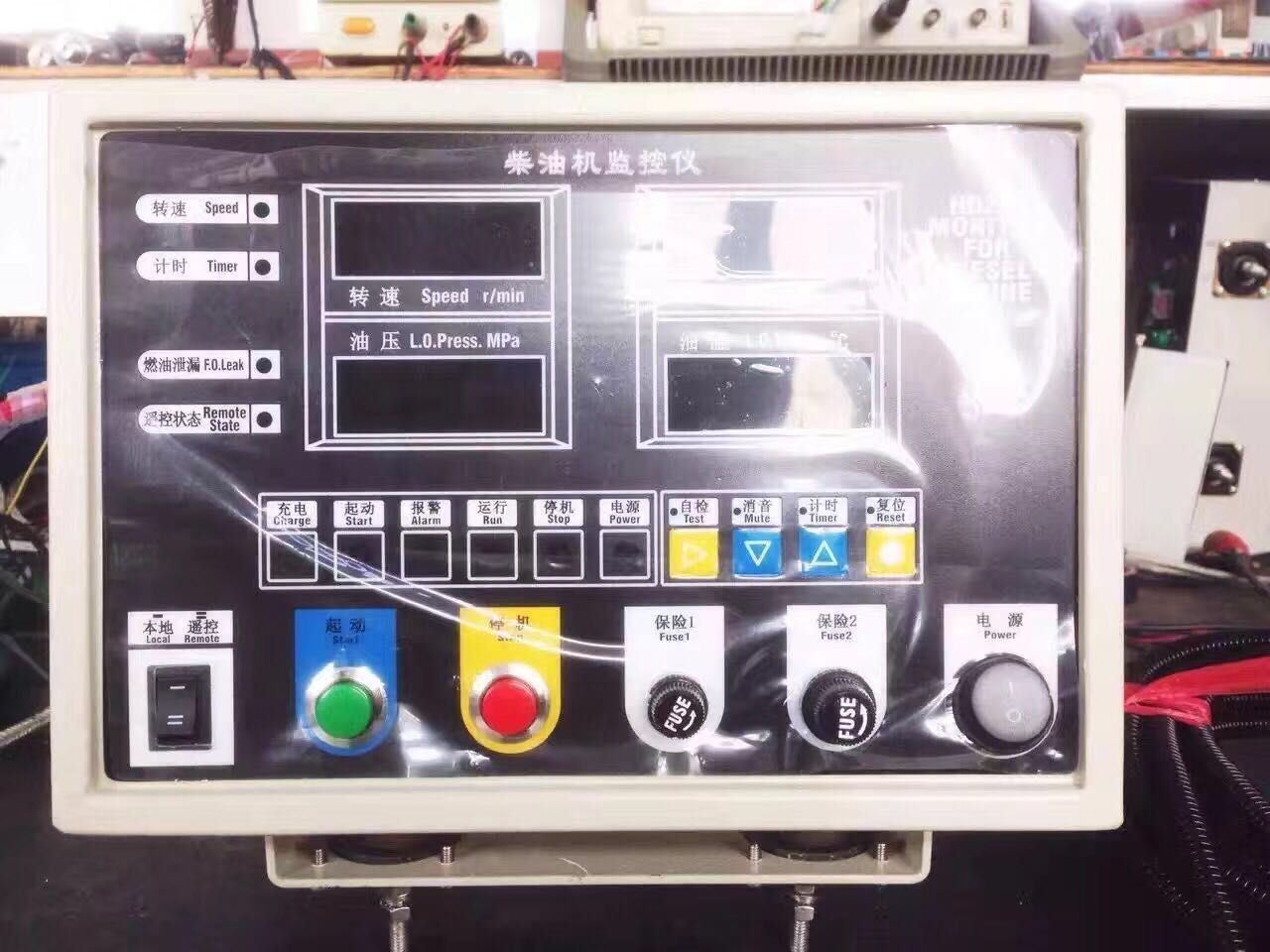

Protection function: When the diesel engine's operating condition exceeds the limit, the monitor will send out intermittent sound and light alarm signals. When the diesel engine's operating condition returns to normal, the alarm signal disappears automatically, and the sound alarm can be manually eliminated by the "mute" button on the panel. At the same time, the flash signal turns to flat light. Multi-parameter comprehensive monitoring, the monitoring function can be set according to user requirements Pressure zero point automatic zeroing function Remote display function Remote control display function Diesel engine running time accumulation function Parameter operating condition information storage function



Use

The diesel engine monitor has the characteristics of advanced design, high measurement accuracy, reliable operation, small size, digital display, accurate and intuitive, easy operation and installation, etc. It can be used for various types of diesel engines such as ships and land-based power stations. It is a new generation of electronic instrument system that realizes the mechatronics of diesel engine products.



Installation type and applicable scope

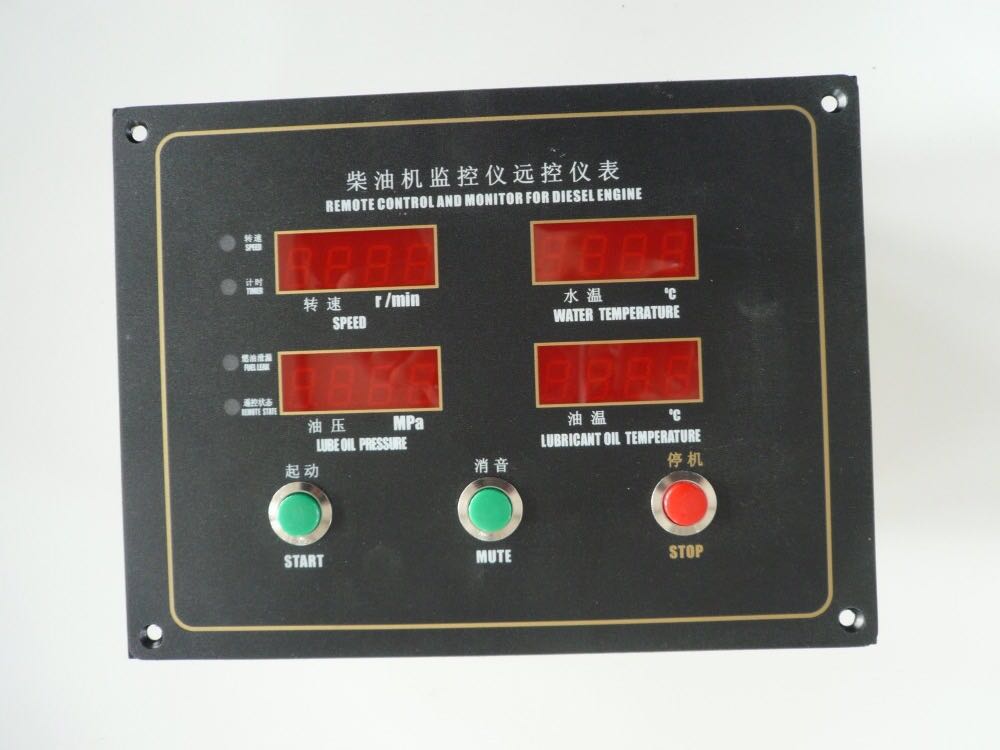

The monitor can be directly installed on the diesel engine. The remote display can be installed in the cab.
Specification

Operating environment temperature	11°C~+55°C
Relative humidity	98%
Vibration	2~13.2Hz,amplitude+1mm; 13.2~90Hz,acceleration±8m/s2
Power supply	DC:24V:±30%
