Product Description

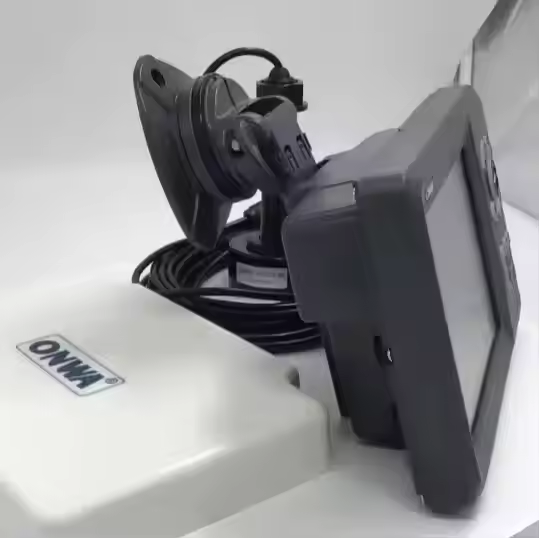

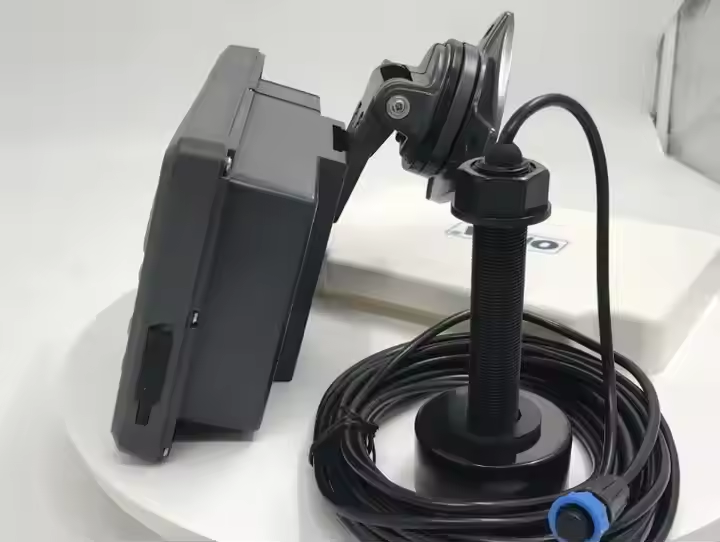

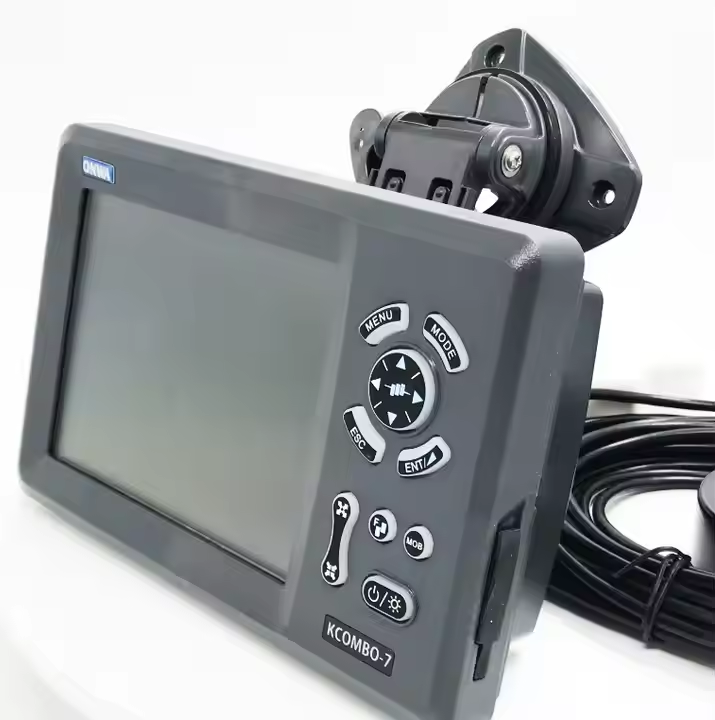

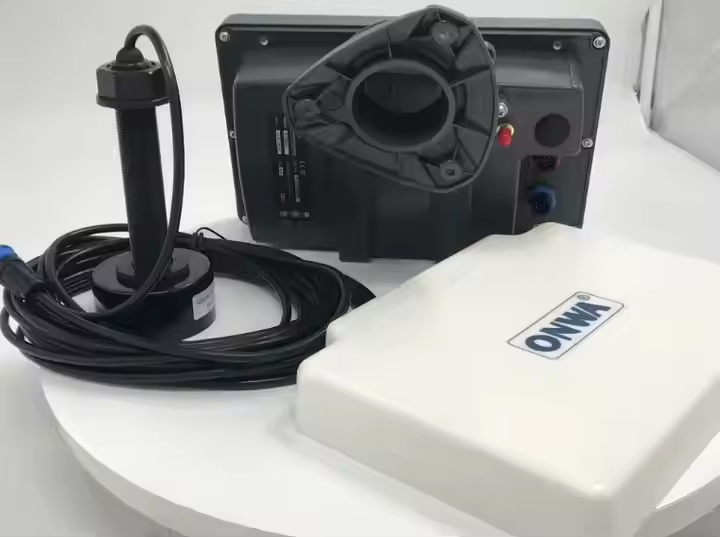

GPS CHART PLOTTER WITH FISHFINDER
The sino GPS PLOTTER aid are specially designed for the vessel traffic management, is a professional navigation products.
The products are designed to be all-sealed and waterproof, can be rapid position-fixing and resistant to poor environment. The software is powerful by using the advanced ARM9 processors can be capable to display faster, and the design for operation is professional and reasonable, can be easy to use. The built-in Large-capacity map storage space provides intuitive and accurate indication to navigation. It s applicable to the navigation and position-fixing of various vessels at sea and rivers, as well as the information collection, river management, etc.
features are as follow:
1,Easy to operate
2,Ultra high brightness LCD, viewable under strong sunlight
3,Compatiable with dual mapping system,C-MAP NT MAX and ONWA K-Chart
4,Built-in GPS antenna, external antenna can be used as an option

5,Digital HD fishfinder technology

6,Built-in commercial fishfinder module which is widely using in worldwide
commercial fishing bost

7,IPX7 waterproof panel

Specification

item brand	SHSINOOUTPUT
Condition	New
Size	243mm(H)X155mm(W)X82mm(D)
Routes	Max 30 routes. And up to 170 points for each one
Alarms	XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm
Tracks	8000 points automatic track log; 10 saved tracks (up to 8000 track points each). Let you retrace your path in both directions
Palette	Normal Daylight exposed to sunlight Night in dark environment NOAA paperchart colors
Tides	Tide data
Projection	Mercator projection
Position format	Degree of minutes and UTM
Basemap	Built-in Onwa K-Chart
External Map	SD Cards slot for C-Map MAX and ONWA K-Chart
Plot Interval	5s to 60min 0.01nm to 10nm Automatic way
Plotting scales	0.001nm to 1000nm
Update rate	Position: 2.5 meters(95%) without S/A Velocity: 0.1 meter/sec without S/A Time: 100ns synchronized to GPS time
Celestial	Sunrise/Sunset Moonrise/Moonset
