Sinooutput Marine Parts Supplier Porthole Premium Customized Aluminum Sliding Windows for Marine Applications
Sinooutput Marine Parts Supplier Porthole Premium Customized Aluminum Sliding Windows for Marine Applications
- Category： Products
- Views：1
- Product description：
Aluminium sliding window marine window
Product Description
|

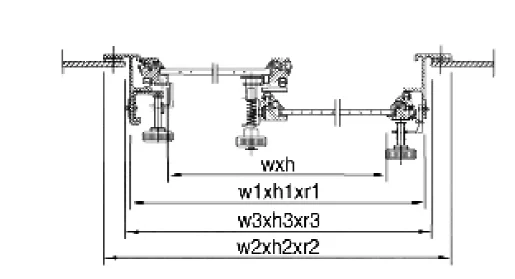

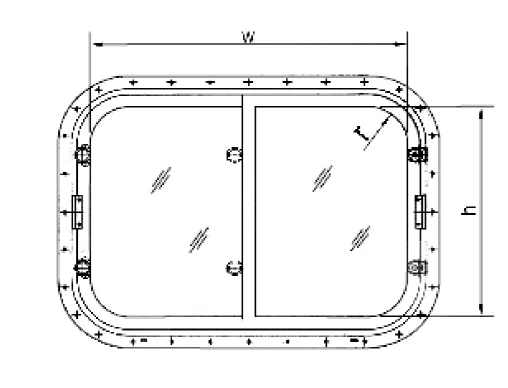

Single light size WxHxR |
Window frame size |
Size of B H opening W3xH3xR3 |
Glass size |

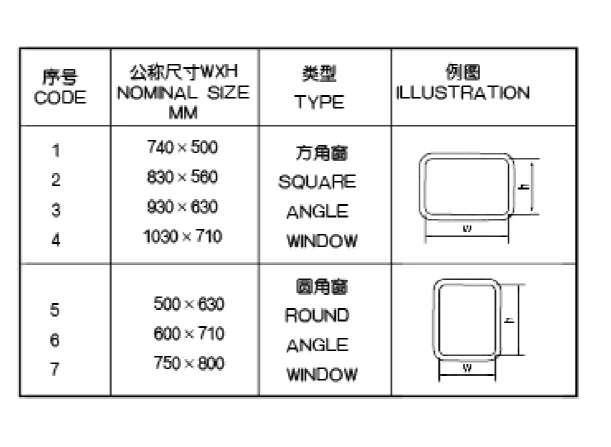

Nomnal Size WxH |
Number of bolts | Weight | |||
| W1xH2xR1 | W2xH2xR2 | T W4xH4xR4 | T=8 | T=6 | |||||
| 355x500x50 | 828x588x94 | 890x650x125 | 840x600x100 | 6.8 | 373x518x58 | 740x500 | 20 | 20 | 18.9 |
| 400x560x50 | 918x648x94 | 960x710x125 | 930x660x100 | 418x578x58 | 830x560 | 24 | 21.9 | 20.7 | |
| 450x630x100 | 1018x718x144 | 1080x780x175 | 1030x730x150 | 468x648x106 | 930x630 | 26 | 24.8 | 23.3 | |
| 500x710x100 | 1118x798x144 | 1080x860x175 | 1130x810x150 | 518x728x106 | 1030x710 | 30 | 28 | 26.1 | |
| 235x630x50 | 588x717x94 | 650x780x125 | 650x780x125 | 253x648x58 | 500x630 | 18 | 18.6 | 17.8 | |
| 285x710x50 | 688x798x94 | 750x860x125 | 750x860x125 | 303x728x58 | 600x710 | 22 | 21.5 | 20.4 | |
| 360x800x50 | 838x868x94 | 900x950x125 | 900x950x125 | 378x818x58 | 750x800 | 26 | 25.6 | 24 | |
