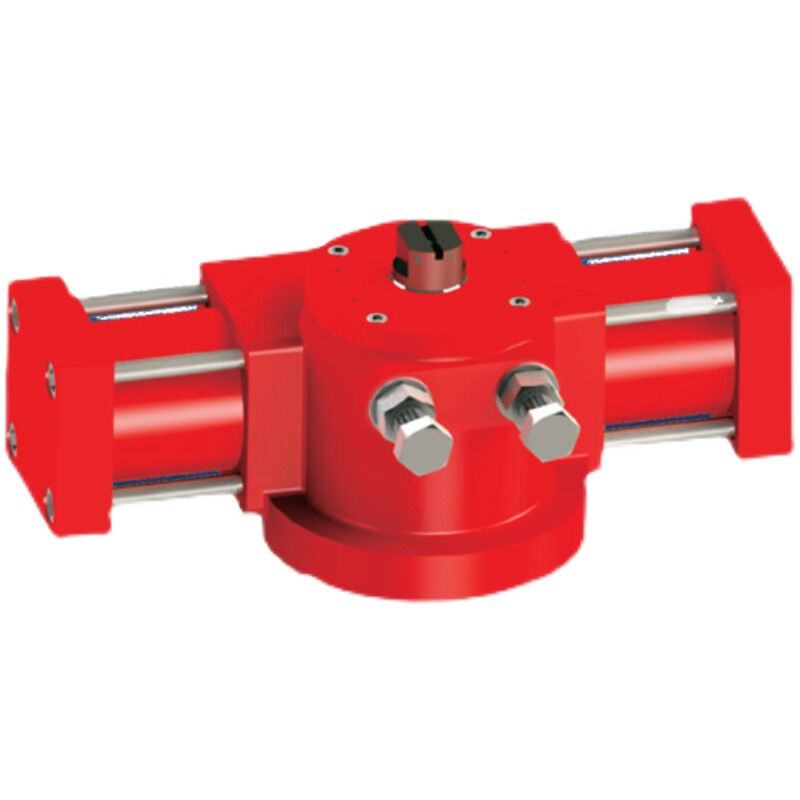

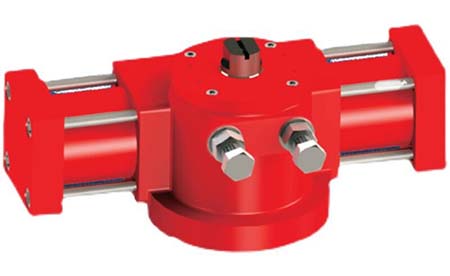

Miniature Hydraulic Actuator

Features:

1) Spring return and double acting configurations are both supported.
2) Component for Central Oil Ports are supported, convenience to direct mount all kinds of hydraulic block.

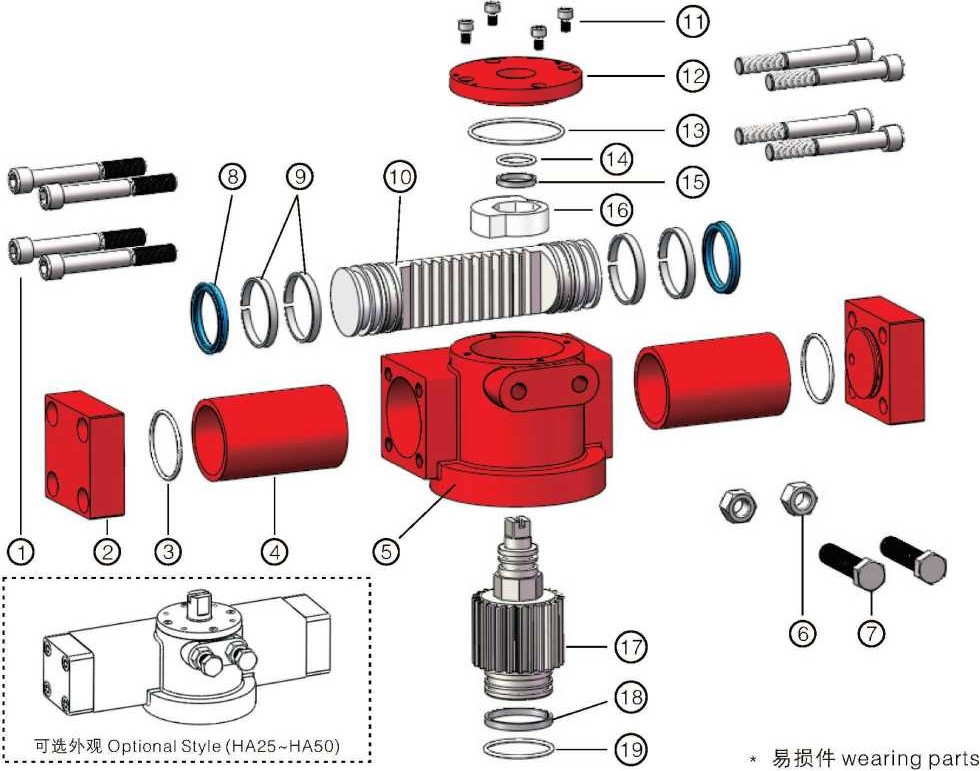

3) Rack and Pinion design, simple and reliable, small volume, smooth action, big output torque.
4) Rack and Pinion using material ASTM 1045.
5) Hydraulic Cylinders adopting ASTM 1045 seamless steel pipe with smooth inner wall, low friction, make sure long life of actuator.
6) Two travel stops, supports bi-directional travel adjustment, range of adjustment ± 5° .
7) Bottom connection conforms to ISO5211.
8) Top connection conforms to NAMUR (except HA25 & HA30).

Typical Application:

Automation of ball valves, butterfly valves, plug valves and other part turn equipment.

Working Condition:

1) Hydraulic Oil: wearable non-corrosive hydraulic oil, with medium viscosity.
2) Rated Pressure: design pressure is 20MPa, maximum working pressure is 16MPa.
3) Working Temperature: -20~+80°C
4) Anti-vibration: work properly under condition without strong vibration.
5) Lubrication: no routine maintenance or lubrication is required. All moving parts are lubricated with heavy duty grease.
6) Installation： suited for indoor or outdoor application.
7) Selection&Mark: reasonable selection according to specific working condition； technical data noted on the mark.

Accessories:

1) Declutchable manual override or hydraulic pump for manual emergency control.
2) Limit switch boxes available with a wide range of switches and position transmitters.
3) Hydraulic circuits with check valve, throttle valve, solenoid valves, electro-hydraulic supply system, accumulator, etc, for valve operation and control.
