Heavy-Duty Marine Hydraulic Winch System - High-Power Boat Winch with Hydraulic Motor Drive for Commercial Vessels
Heavy-Duty Marine Hydraulic Winch System - High-Power Boat Winch with Hydraulic Motor Drive for Commercial Vessels
- Category： Other parts
- Views：24
- Product description：
Product Description

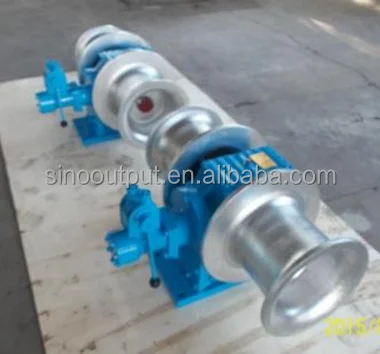

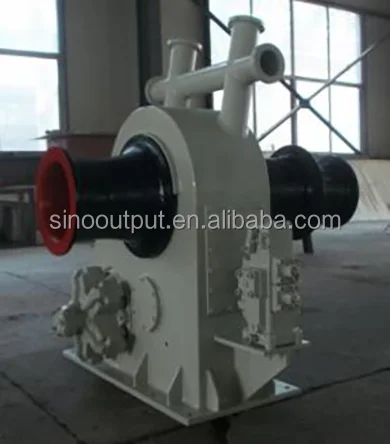

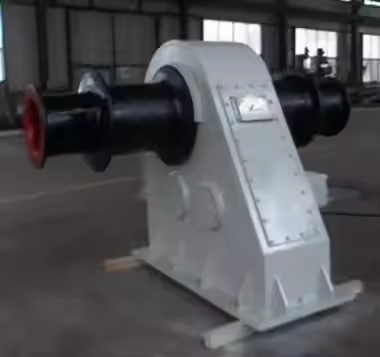

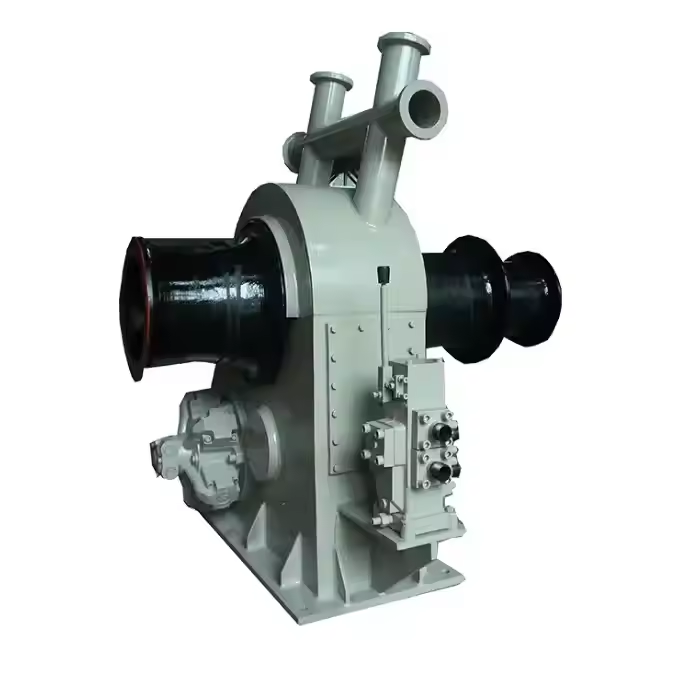

SINO-FW seine winch machine adopts double-friction drum coaxial symmetrical layout structure, equipped with two-stage gear reducer, high-power hydraulic motor drive, strong power, manual proportional compound valve control. Control the twisting speed, flexible and convenient.
Based on the original structure, SINO-FW-2 wire mesh machine adds a simple structure design,Effectively improve the convenience of product use.
Specification
|
Model
|
Main wheel diameter
|
Rally
|
Winding speed
|
Weight
|
|
SINO-FW
|
300mm
|
2×30KN·m
|
45m/min
|
1075kgs
|
|
SINO-FW -2
|
300mm
|
2×40KN·m
|
45m/min
|
1120kgs
|
|
SINO-FW P
|
239mm
|
1500kgs
|
40m/min
|
198kgs
|
