Marine engine generator parts diesel fuel filter water separator fuel filter assembly high-quality filter material

Category： Other parts
Views：43
Product description：
INQUIRY

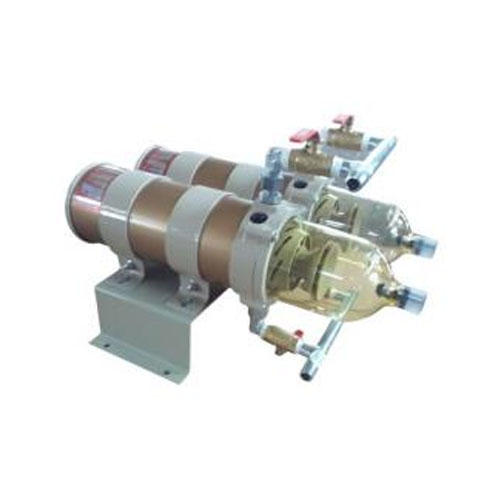

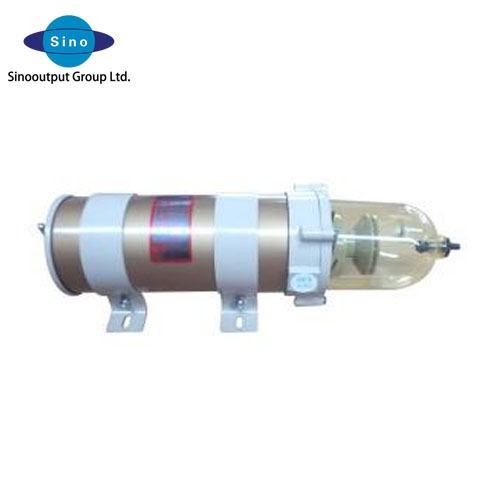

SINO-FWS series oil-water separator adopts special structure and high-quality filter material, which can remove moisture and impurities in the fuel to the greatest extent, and protect the fuel system of diesel engines; prolong the service life of high-pressure fuel pumps and internal parts of fuel injectors. The double-chain structure can It is an ideal matching choice for small marine diesel engines to realize non-stop replacement of filter elements.

Model	Maximum flow rate	High	Width	Depth	Weight	Maximum luck make pressure	Material	Object movement space
500 series	60 gph 277 lph	13 ”/330mm	6 ”/152mm	6 ”/152mm	4 lbs/2kg	15 psi 103kpa	2010	4 ”/102mm
900 series	90 gph 341 lph	17 ”/432mm		7 ”/178mm	6 lbs/3kg		2040	5 ”/127mm
1000 series	180 gph 681 lph	22 ”/559mm			10 lbs/5kg		2020	10 ”/254mm
