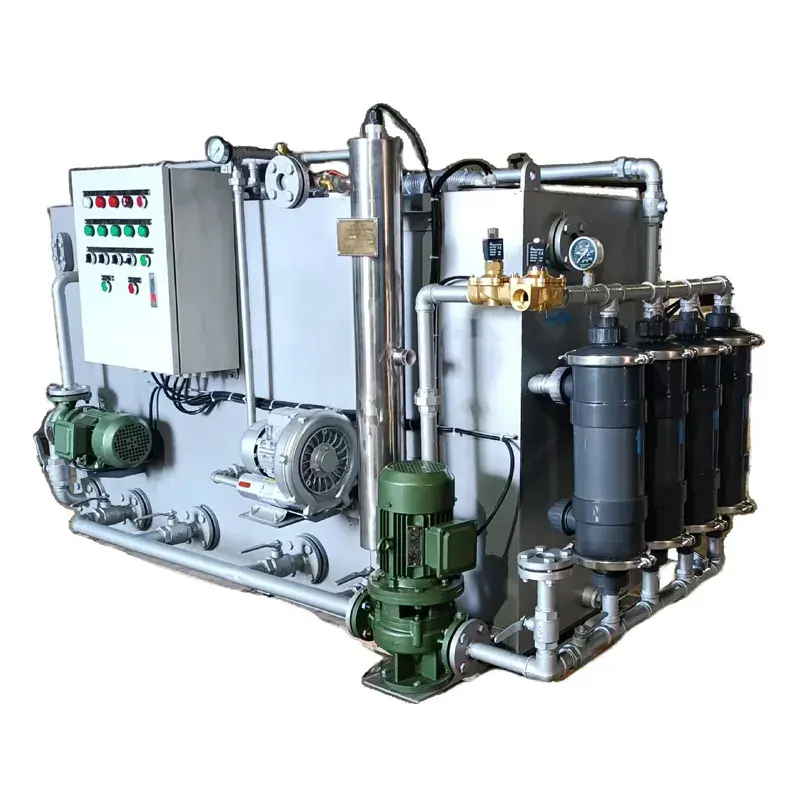

Model: ZJ-80C Type
Capacity: Rated capacity: 80 persons
Average treatment load: 5600L/d
Discharge water pressure: 0.15 MPa
Ambient temperature:0~50℃ Relative humidity:≤95%
Discharge style: Automatic discharge
L×B×H≈2350×1800×1800 mm
Power: 3.0KW
Operating and maintenance space ≥600mm (surface)
The main body is made of Q235B steel plate.
Sand blast and anticorrosion coat the pipe support, stand, main body and other spare parts.
Sand blast the device surface to reach Sa2.5 grade. The paint of internal wall which contacts with sewage is epoxy tar paint.
Protection grade: Electric control box IP44
Motor IP44

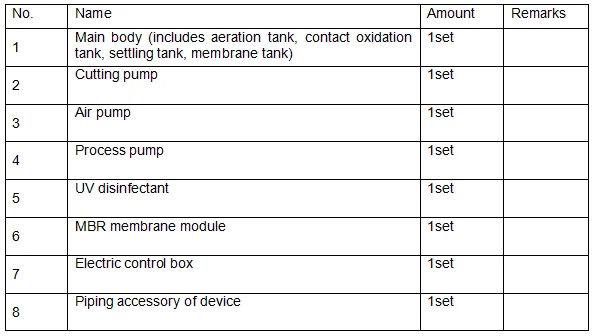

Equipment list
